Conveyor Spare Parts 89mm Diamater 900mm Length Flat Return Rollers Under Belt

Name: Conveyor Spare Parts 89mm Diamater 900mm Length Flat Return Rollers Under Belt
Brand: JINRUI
Price: 1 USD

Quality Conveyor Spare Parts 89mm Diamater 900mm Length Flat Return Rollers Under Belt for sale

Brand Name : JINRUI

Model Number : 89*900

Certification : ISO/CE

Place of Origin : CHINA

MOQ : 20 SET

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 30 set per month

Delivery Time : 10-15 working days

Packaging Details : seaworthy packing

Materials : Carbon steel

Diameter : 89mm

Usuage : belt conveyor return roller

Product name : Return Roller

Warranty : 1 Year

Type : Flat

Contact Now

Conveyor Spare Parts 89mm Diamater 950mm Length Flat Return Rollers Under Belt

1. Overview

The belt conveyor roller is the most important part of the belt conveyor, and it is also the most important part of the belt conveyor. The belt conveyor idler is different from the unpowered roller used for material transportation, although the composition and appearance are approximately the same. However, the carrying capacity of the belt conveyor idler roller is relatively large, and there are corresponding restrictions on the speed.

2. Classification

Groove upper roller
The standard groove angle of the upper trough roller is 35 degrees, so the 35 degree trough roller and the 35 degree trough forward tilt roller are the most used in each conveyor.
Buffer roller
The buffer roller has 35 degrees and 45 degrees. When the canvas conveyor belt is selected, the 35 degree trough buffer roller can only be used. When using a 45-degree trough-type buffer roller, you can use a 45-degree trough-type roller in the section where the guide trough is not impacted by the material
Transition roller
Conveyors with large capacity, long distance, high belt tension, and important conveyors should generally be equipped with transition sections.
Return roller
The return roller is also called the parallel lower roller, and it is also the most used lower roller.
Self-aligning roller
Self-aligning rollers include ordinary self-aligning rollers, friction self-aligning rollers and tapered self-aligning rollers. The self-aligning roller is used to automatically correct the excessive deviation of the conveyor belt during operation to ensure the normal operation of the conveyor.

Conveyor Spare Parts 89mm Diamater 900mm Length Flat Return Rollers Under Belt

3. Maintenance

Since belt conveyor rollers account for the largest number of belt conveyor components, maintenance is particularly important for belt conveyor rollers. The belt conveyor roller should be maintained in a dry environment during use, and the damaged roller should be replaced in time. Clean up the materials attached to the rollers in time. Keep the roller surface clean.

4. More attention:

1. During the installation, pay attention to the assembly dimensions of all parts of the fuselage and keep the straightness of the whole machine.

2. Tighten bolts when installing bolt fasteners.

3. The center line of the belt at both ends shall be aligned when making the belt joint to prevent the belt from running off.

4. When installing the protection part of the electric appliance, be careful to prevent damage.

5.Tech data

Belt width(mm)	Roller		Bearing NO.
800	D	L	Bearing NO.
1000	89	315	204,205
1200	108	380	204,205,305
1400	133	465	205,305,206,306
1600	133	530	205,305,206,306
1800	159	600	205,306,307,308,309
2000	159	670	207,309,308
2200	194	800	207,307,308,309
2400	194	900	206,307,308,309

6.Packing Details:

1,Outer packing is plywood case, which is up to the international standards.

2,Inner packing is Moisture-proof and water-proof membrane.

3,All of package are wrapped by 0.5mm steel belt to further strengthen.

Product Tags:

mobile conveyor belt

wheel conveyor

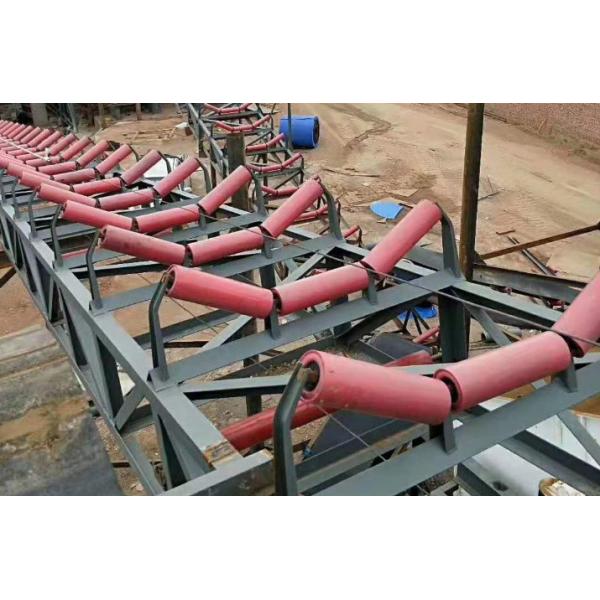

Conveyor Spare Parts 89mm Diamater 900mm Length Flat Return Rollers Under Belt Images
